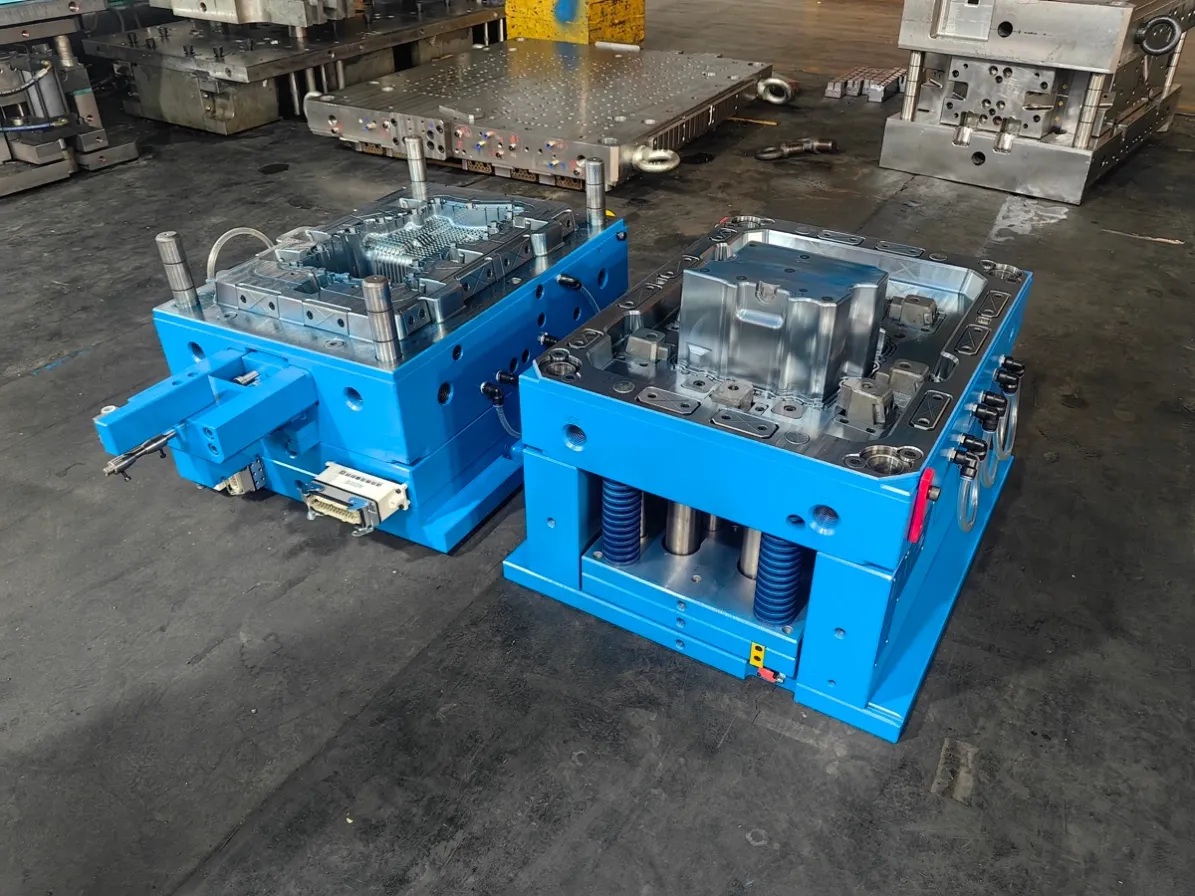

Automotive Cylinder Head Cover Injection Mold
Custom automotive cylinder head cover injection tooling with review of filling, warpage, ribs, bosses, cooling, ejection and assembly interfaces.
Injection Tooling for Automotive Cylinder Head Cover Components
Automotive cylinder head covers can include broad visible surfaces, ribs, bosses, clips, fastener locations, local thickness changes, and assembly interfaces. Mold design should address filling balance, cooling, shrinkage, warpage, venting, ejection, and visible-surface protection.
Engineering Considerations
• Gate position and filling balance
• Rib, boss, clip, and fastener geometry
• Cooling layout and cycle consistency
• Shrinkage and warpage risk
• Venting and burn-mark risk
• Ejection and protection of visible surfaces
Send the part data, resin grade, molding-machine information, annual volume, appearance standard, and critical assembly dimensions.
